Weigh as you tip
Hydraulic pressure is measured while the trailer body is raised, rather than requiring a separate weighbridge visit for every load.
Hydraulic trailer weighing
Know every load.
A practical trailer weighing system that uses the tipping hydraulics and trailer angle to estimate load weight, then makes those weights useful on your iPhone.
Weigh as you tip
Designed for agricultural trailers
Load records and running totals
iPhone app
Pre-launch: final specifications, compatibility, pricing and availability will be confirmed after testing.

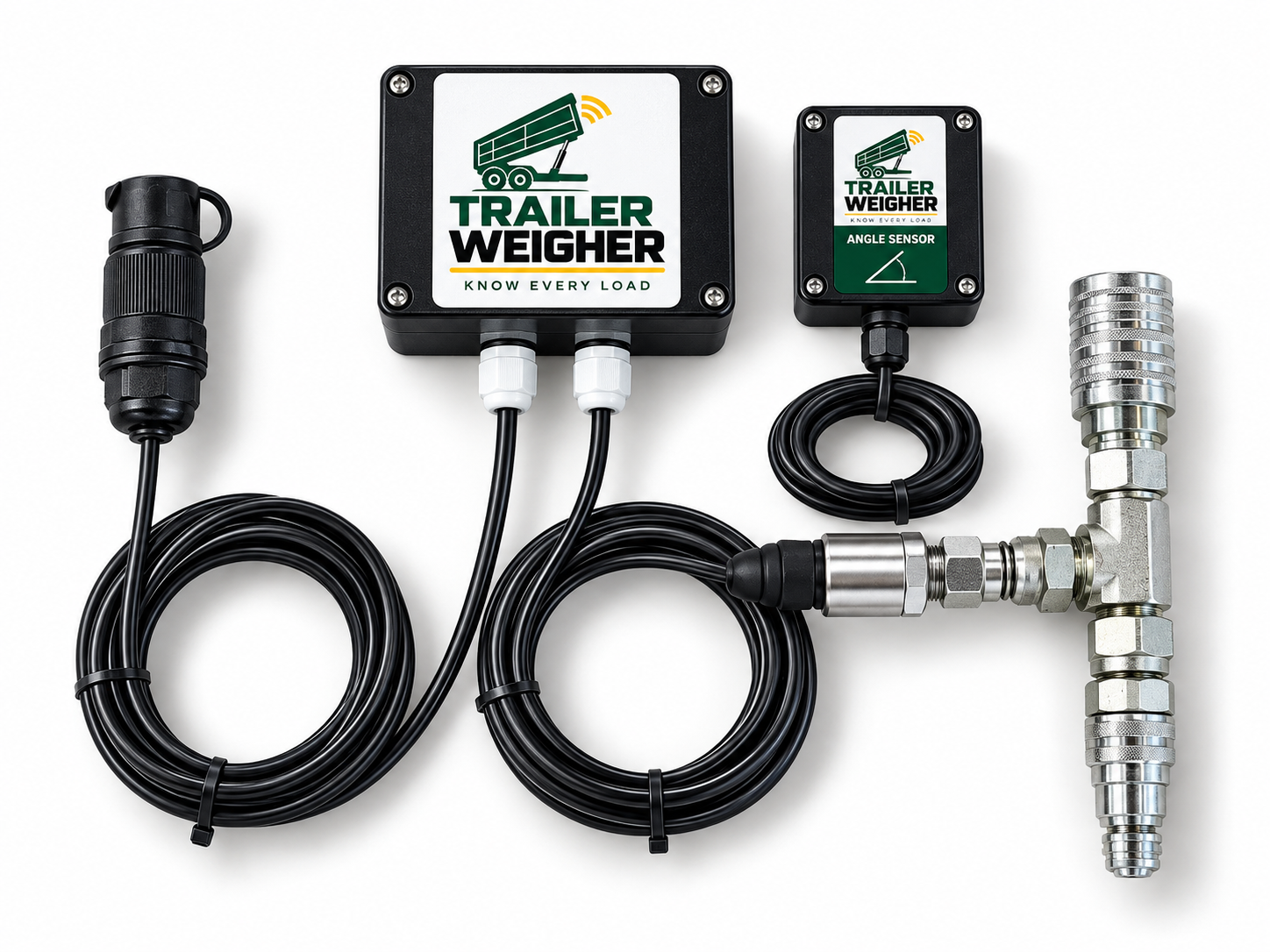

Current pre-launch hardware
Built around the job
Useful weighing without adding another job to harvest.
Trailer Weigher is being designed to fit into the normal tipping process and keep the result useful after the trailer is empty.
Measure the body angle
A trailer-mounted Angle Sensor gives the system a repeatable reference as the hydraulic geometry changes through the tip.
Trailer-specific calibration
Each trailer can have its own calibration so the calculation reflects that trailer's hydraulic setup rather than assuming every trailer is identical.
Keep useful records
Save finished loads and build running totals by trailer, field, farm and storage location in the Trailer Weigher app.
Main hardware

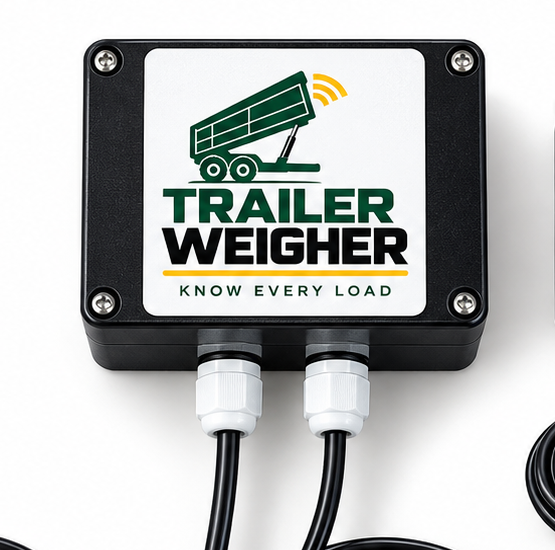

Trailer Weigher Main Box
Reads the pressure signal, receives the trailer angle and runs the trailer-specific calculation locally.
Trailer-mounted sensor

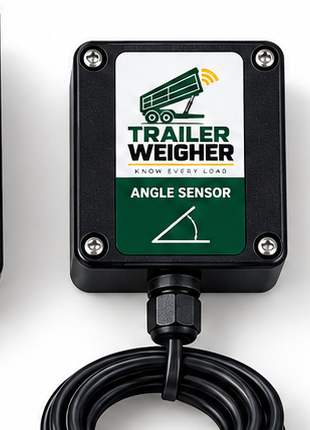

Trailer Weigher Angle Sensor
Stays mounted on the trailer and gives the system a repeatable body-angle reference during tipping.
How it works
Pressure + angle + calibration.
The system combines measurements from the trailer with its own calibration, then sends the result to the iPhone app.
Pressure Sensor
Connects into the trailer tipping circuit and measures hydraulic pressure as the body is raised.
Angle Sensor
Stays mounted on the trailer and sends pitch and roll information wirelessly to the Main Box.
Main Box
Combines pressure and angle with that trailer's calibration to calculate the estimated load locally.
Trailer Weigher app
Shows the live weight and lets you save loads so field, farm and storage totals build as you work.
Tipping hydraulicsPressure
→
TrailerAngle
→
Main BoxCalculation
→
iPhoneWeight + records
More than a number
Turn each load into a useful record.
The Trailer Weigher app is being built around the information you actually need during harvest: the current load, where it came from and where it went.
- Live trailer weight on iPhone
- Save loads against a field, farm or storage location
- Running tonnage totals
- Trailer-specific setup and calibration
- Optional shared records through iCloud
Development status
We're testing before we sell.
Trailer Weigher is currently in pre-launch development and real-world testing. Registering interest does not place an order or commit you to buying anything.
✓
Working hardware
Main Box, Pressure Sensor and Angle Sensor architecture developed.
✓
iPhone app
Live weighing, trailer setup, calibration and load records in active development.
→
Field testing
Repeatability, compatibility and final calibration behaviour are being validated.
→
Launch specification
Final specifications, availability and pricing will follow testing.
Register interest
Interested in Trailer Weigher?
Tell us a little about your trailers and what you want from the system. We'll use the details you submit to respond to your enquiry and understand demand before launch.
✓ No order or payment
✓ No obligation to buy
✓ Marketing updates are optional
Prefer email? contact@trailerweigher.co.uk
